Es/No -24 Hours


Measured Es/No from Astra 2E/2F/2G

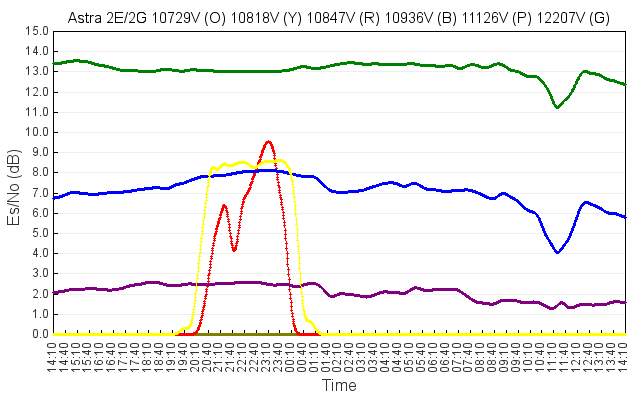

10729 V QPSK Astra 2E UK spot
10818 V QPSK Astra 2E UK spot
10847 V 8PSK Astra 2E UK spot
10936 V 8PSK Astra 2E UK spot

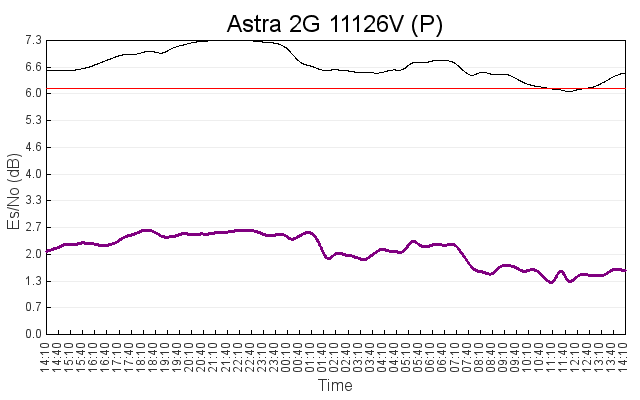

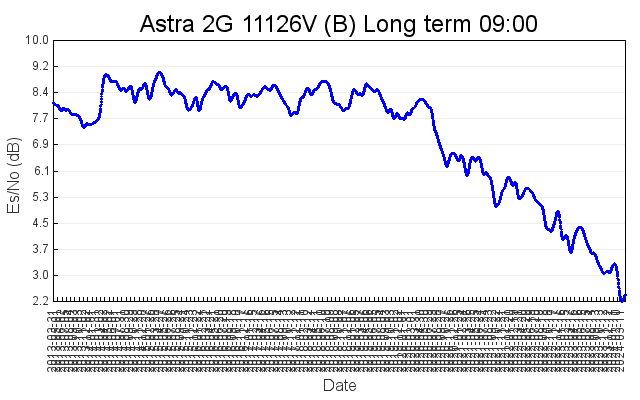

11126 V QPSK Astra 2G UK spot
12207 V QPSK Astra 2F Europe

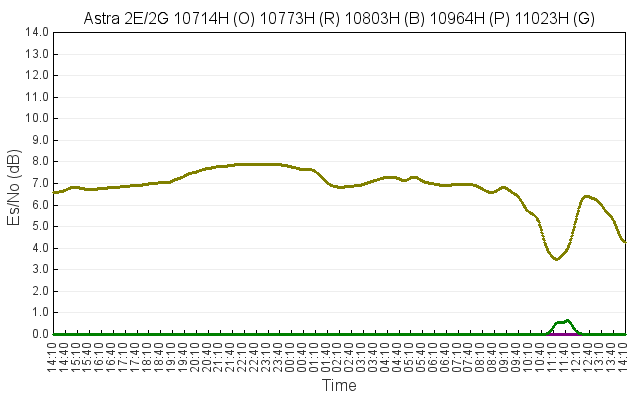

10714 H QPSK Astra 2E UK spot
10773 H QPSK Astra 2E UK spot
10803 H QPSK Astra 2E UK spot

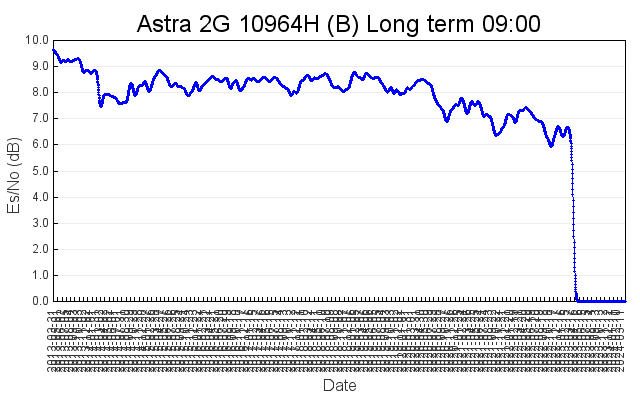

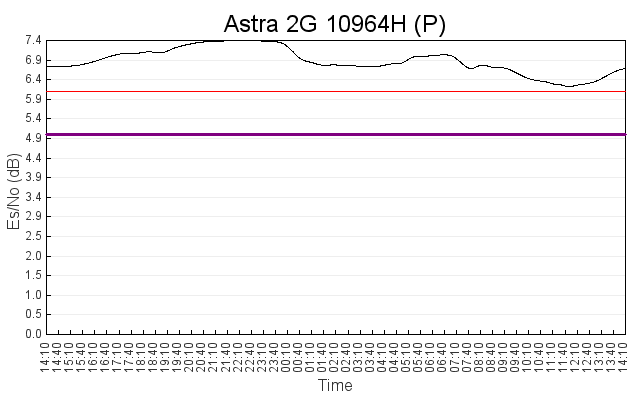

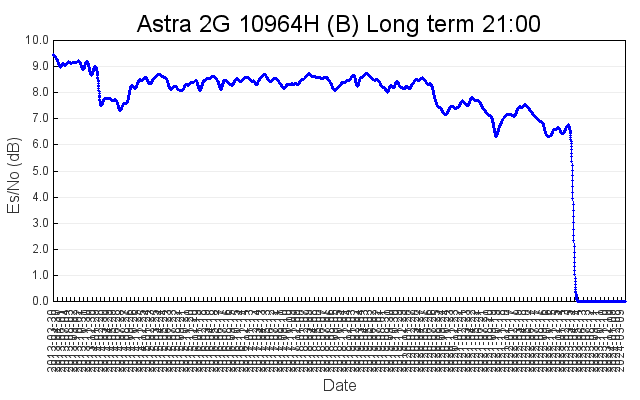

10964 H QPSK Astra 2G UK spot

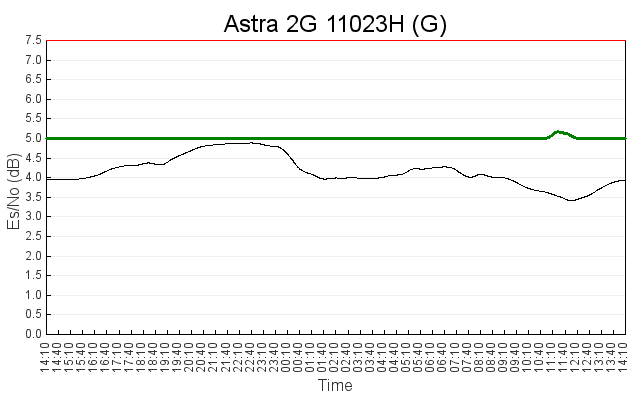

11023 H 8PSK Astra 2G UK spot

TBS6985 (Quad DVB-S/S2)
Dish: Triax TD110, Inverto black ultra quad, 28.2 East

Thin red lines approximative QEF for QPSK and 8-PSK (11023H)
Simple test with wet towel on LNB. Pixilazation at 5.8 dB (ideal demod 5.2 dB) and 7.2 dB (ideal demod 6.6 dB)
(Added 0.3 dB margin)
(12207V has even lower threholds since it has FEC 2/3)

Max "linear" Eb/No is approx 14-15 dB. (15 dB is probably >16 dB)

Thin black lines, average values from 20130330->"Now"
Rotation of LNB 90 degrees 20140215 since pol H is better (lower NF).
This gives vertical TPs some better SNR.

Note: This is not an 24/7 service. Interruption may occur any time...

Location Kungsbacka, Sweden
Lat: 57.450129
Lon: 12.040053



V 11126V H 10964H 11023H 11126V 11126V 10964H 10964H
